SPG Digital screen Printing Machine

SPG Digital screen Printing Machine

  • Categories:Textile Screen Printer
  • MOQ:1
  • Brand:Changs
  • FOB Port:Shanghai port, Ningbo port
  • Terms of Payment:Western Union,T/T Paypal
  • Delivery Time:15 Wording Days

Basic introduction:

The digital direct spraying machine has broken the bottle neck of digital printing technology, and realized areal start printing, no need to make a plate, a full color image. Digital direct injection equipment has little investment, very low printing cost and high quality printing effect. In addition to professional digital printing ink, color saturation can be gorgeous,wide color range, good transition, far beyond the traditional printing effect.

Detailed characteristics:

Digital printing machine combines the advantages of traditional screen printing technology and digital printing technology. Keep thetr a ditional screen printing and digital printing  features.The combination of the two advantages has greatly
1.enhanced the product advantage and the product image's strong adhesion, rich texture,natural transition, high precision, rich colors aturation, bright color, wide color range and other characteristics, bringing the designer unprecedented space and unexpected gorgeous effect.
2.Streamline greatly improves the competitiveness of the product, brings super added value,does not reduce the production efficiency,does not increase the production cost, brings the super value return for your investment;
3.With high output energy, the A4 size can print 200 pieces per hour, matching the speed of oval screen printing machine.
Styleable printed garments, cut pieces and special places with concave and convex surface(such aschest bags, pant bags, etc.);
4.With various types of traditional oval and disc screen printing machines, this machine can be used in various manufacturers.
5.Ending environmental protection paint ink,after printing, only through heating and drying can achieve the requirements of curing test;
6.The micro pressure nozzle of epson is stable and durable, and has a long service life.

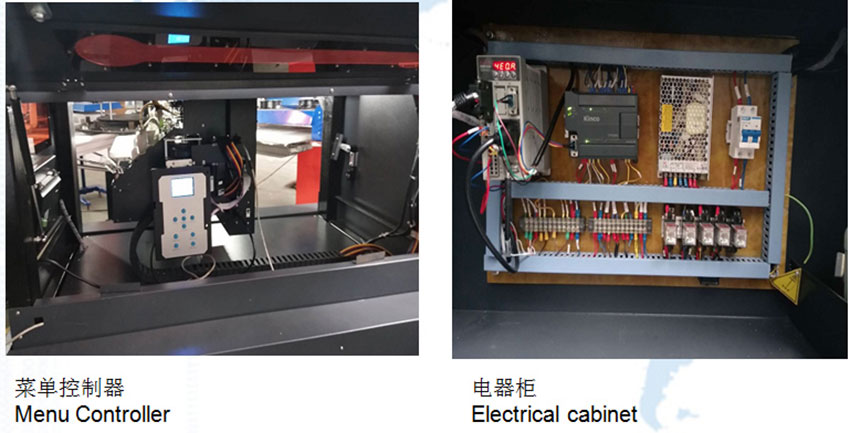

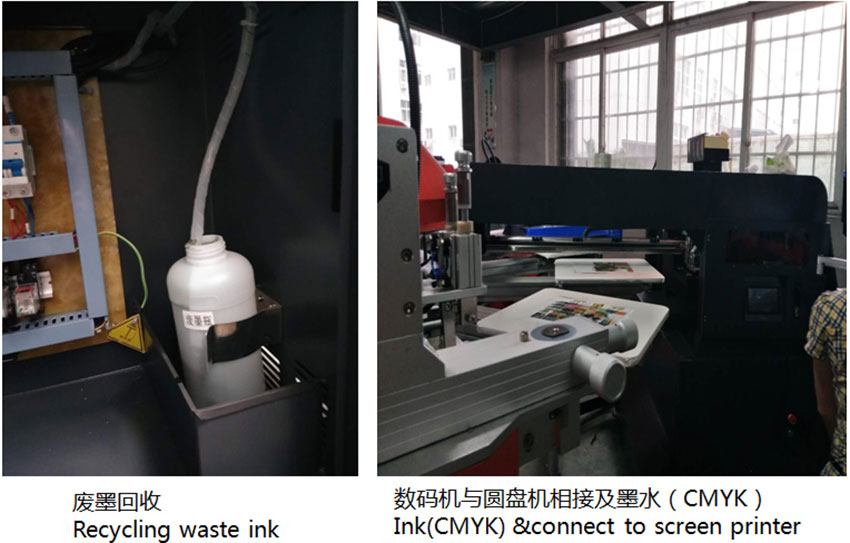

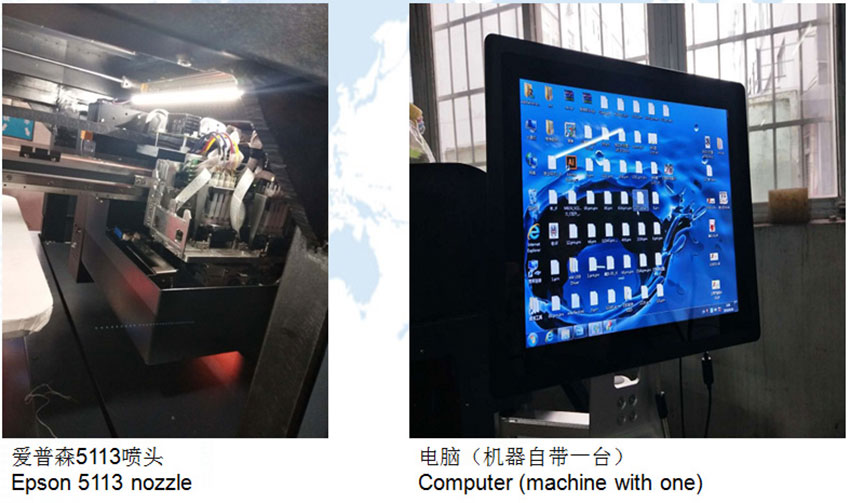

Details show:

Parameters:

Model

SPG-104/8

SPG-156/10

SPG-158/12

Print Color/Station

4-6/8

4-8/10

6-10/12

Max. print Area

300×400mm

300×400mm

300×400mm

Pallet Size

400×500mm

400×500mm

400×500mm

Air Source

≥1.0Mpa

≥1.0Mpa

≥1.0Mpa

Max.Output

700pcs/h

700pcs/h

700pcs/h

Power

2.0Kw

2.0Kw

2.0Kw

Each Dryer Unit Power

13.5Kw

13.5Kw

13.5Kw

Overall Size

Φ3400×1600mm

Φ3400×1600mm

Φ3400×1600mm

Weight

700Kg

800Kg

900Kg

nozzle

Epson-5113

Number of nozzles

2/4 pcs

Nozzle maintenance

Automatic moisturizing automatic

cleaning automatic scraping system

print resolution

720*1200dpi,720*1800dpi,720*2400dpi

The size of the ink

Intelligent controllable ink droplets

ink type

water-based paint ink

print color

KCMY

the way of supply ink

siphon

language of operation

Chinese/English

print speed

200 200pcs/hr

print area

700*500 600*800 700*900/mm

print direction

Level+vertical

print height

1-10mm adjust from 1-10mm

drive way

high precision with

Print interface

USB 3.0

control software

maintop

RIP software

Yili

control software

20-30°C/40%-70%

temperature/ humidity

1700*1100*1560

overall size

800Kg

weight

AC220V  50/60HZ

power supply

1KW





Samples:
